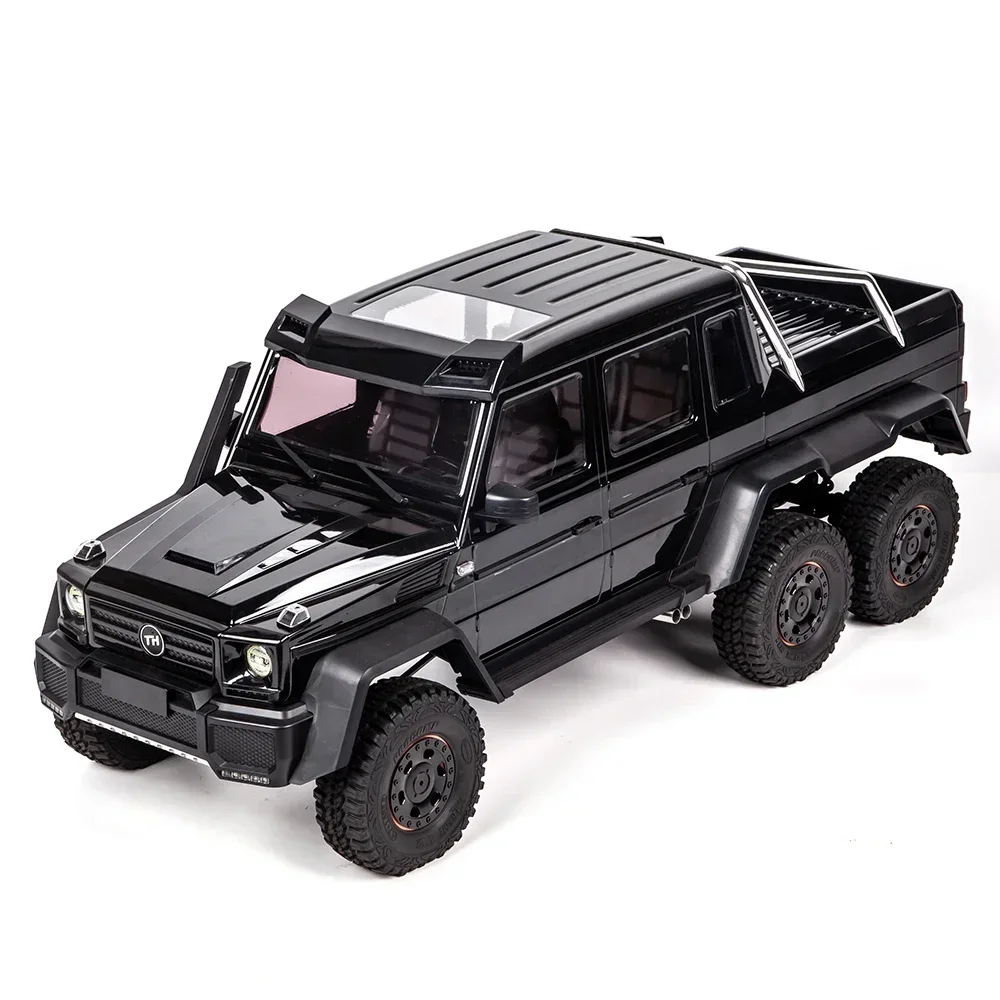

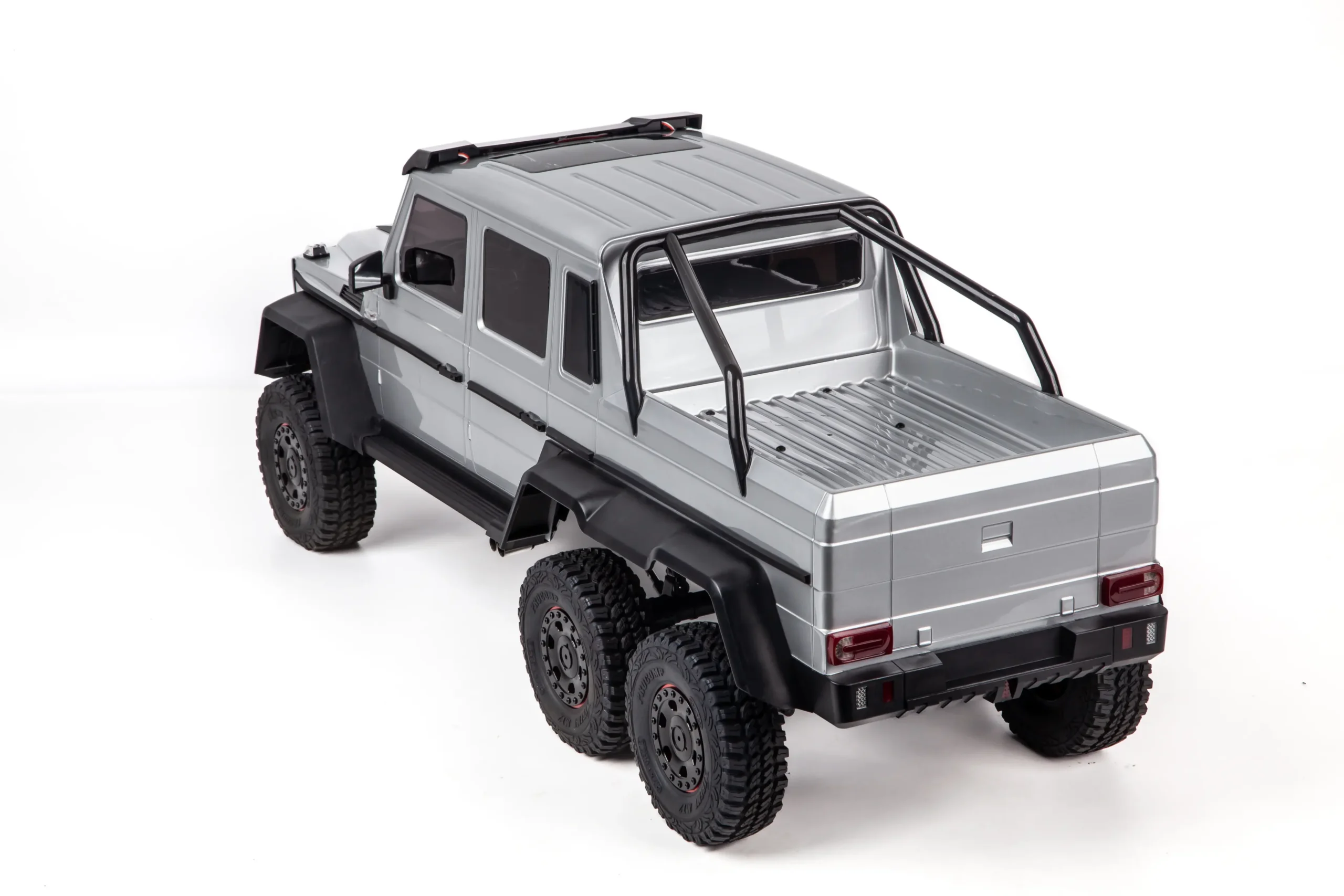

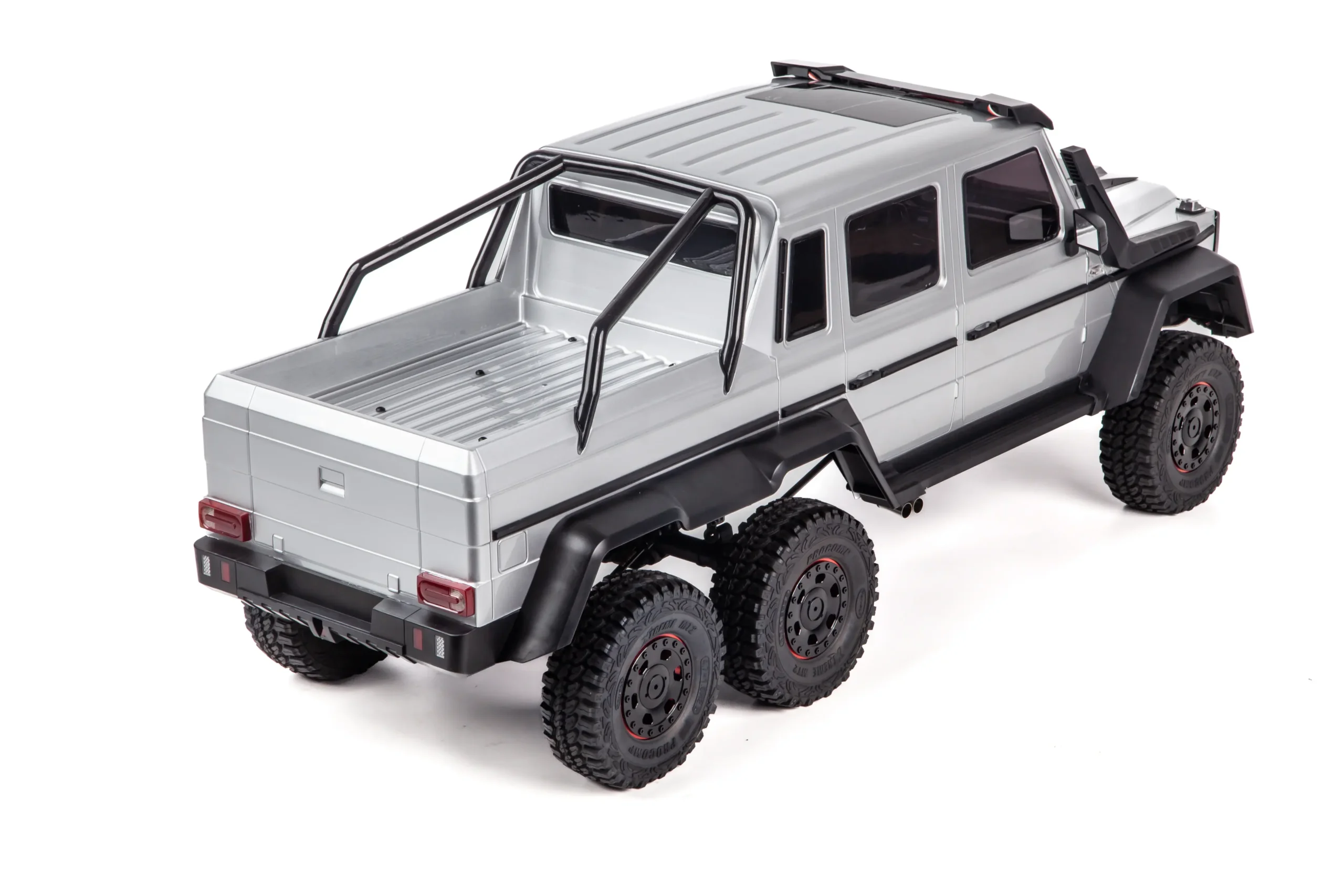

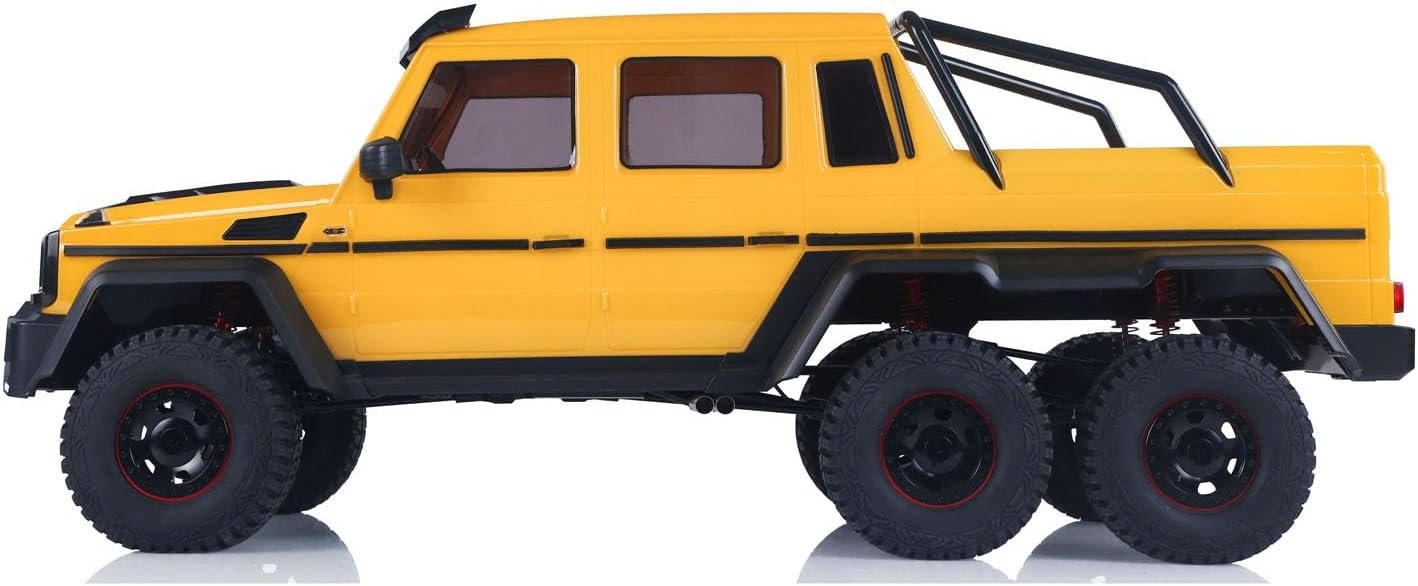

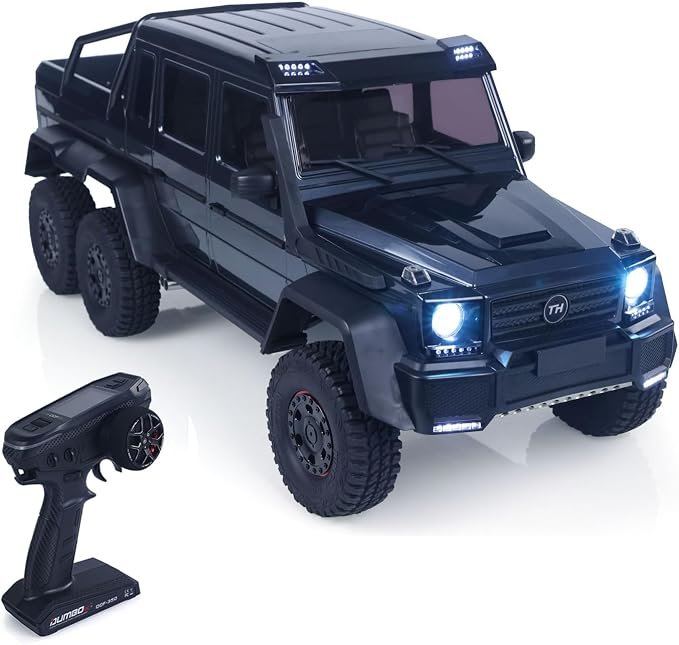

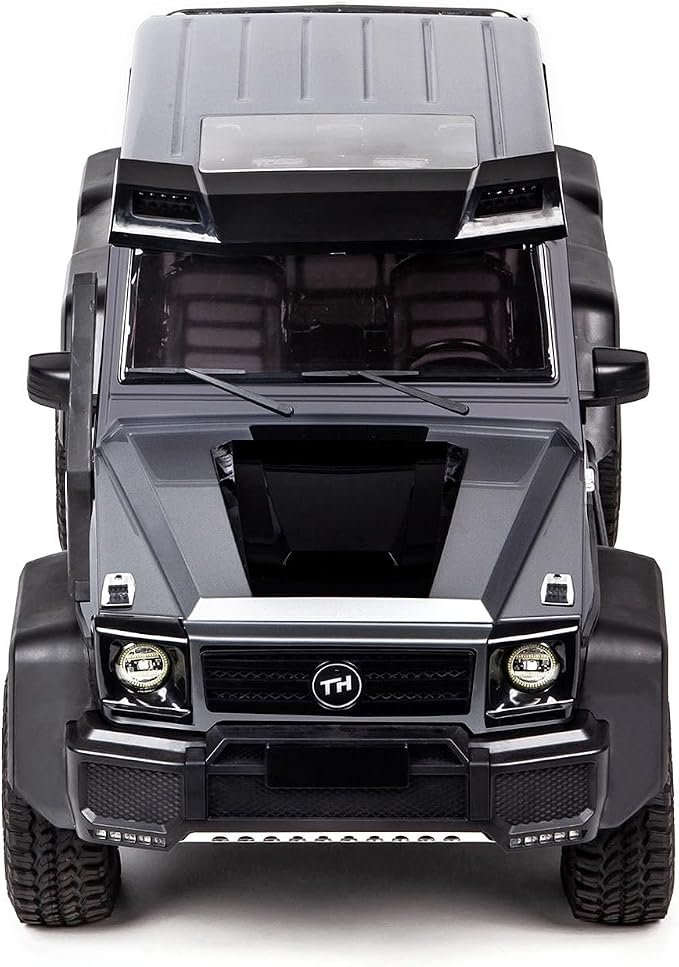

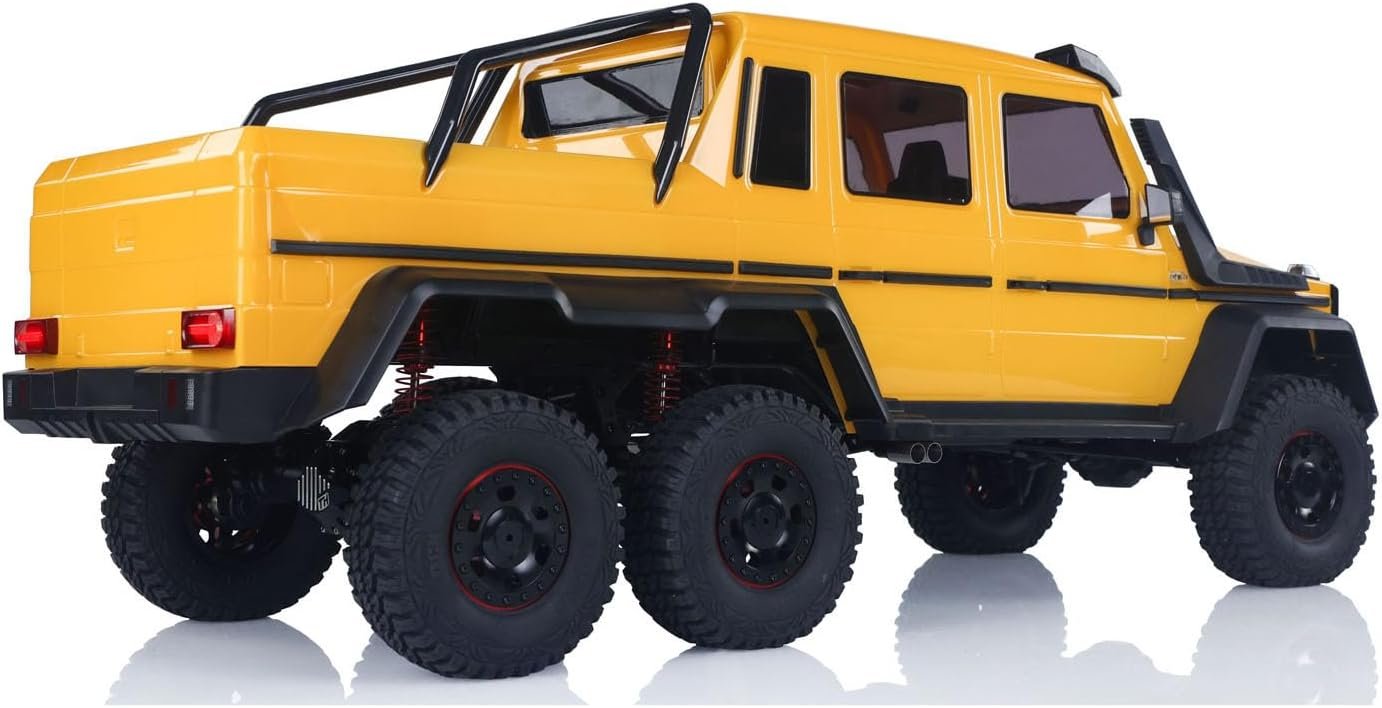

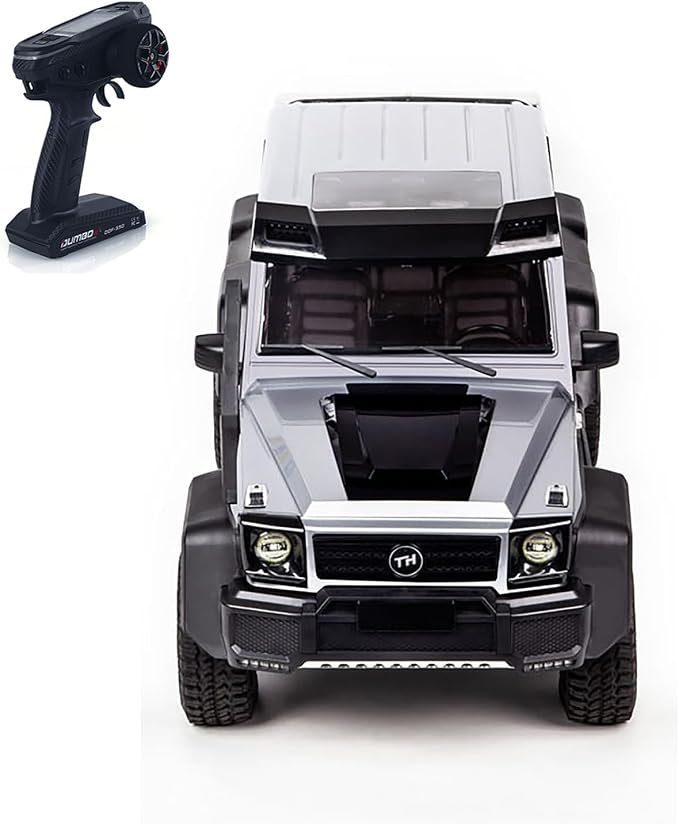

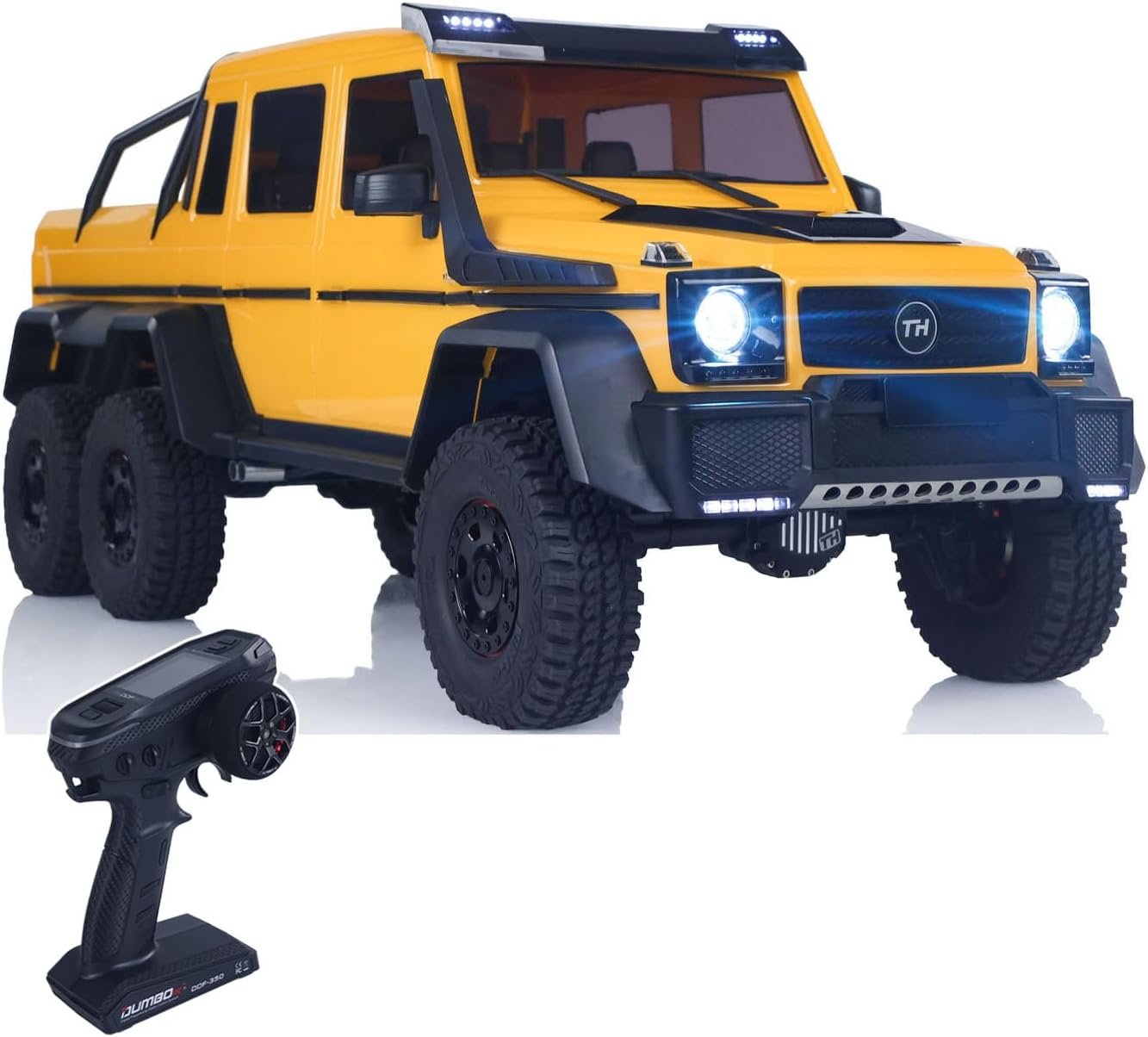

Redefine what a scale crawler can be with the TRACTION HOBBY KM6, a 1/8 scale 6X6 off-road machine engineered with an extraordinary level of realism and mechanical sophistication. Fully assembled and painted, the KM6 combines a highly detailed body, true portal axle geometry, and a robust dual-speed metal drivetrain to deliver serious rock-crawling capability alongside jaw-dropping scale accuracy.
Exceptional Scale Realism

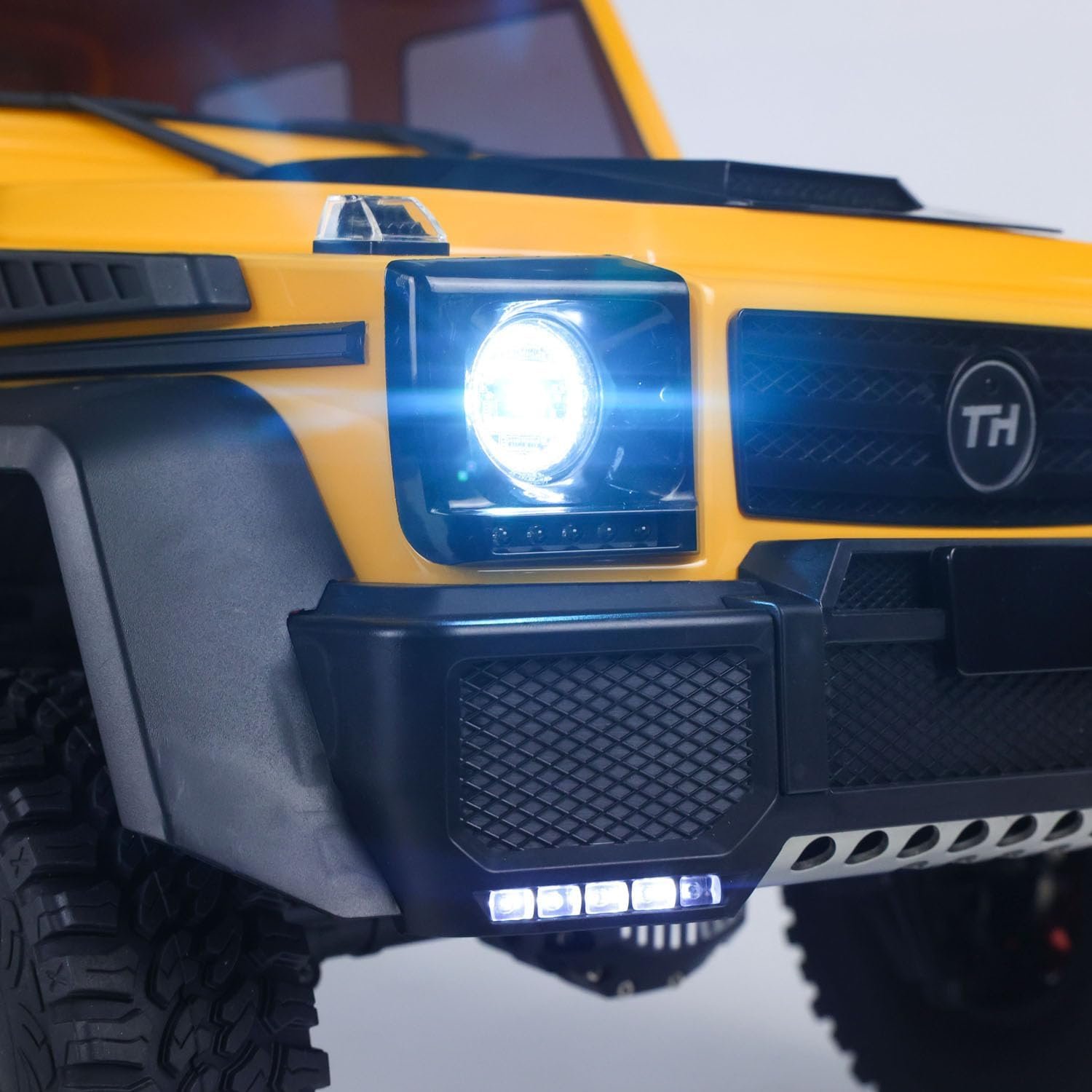

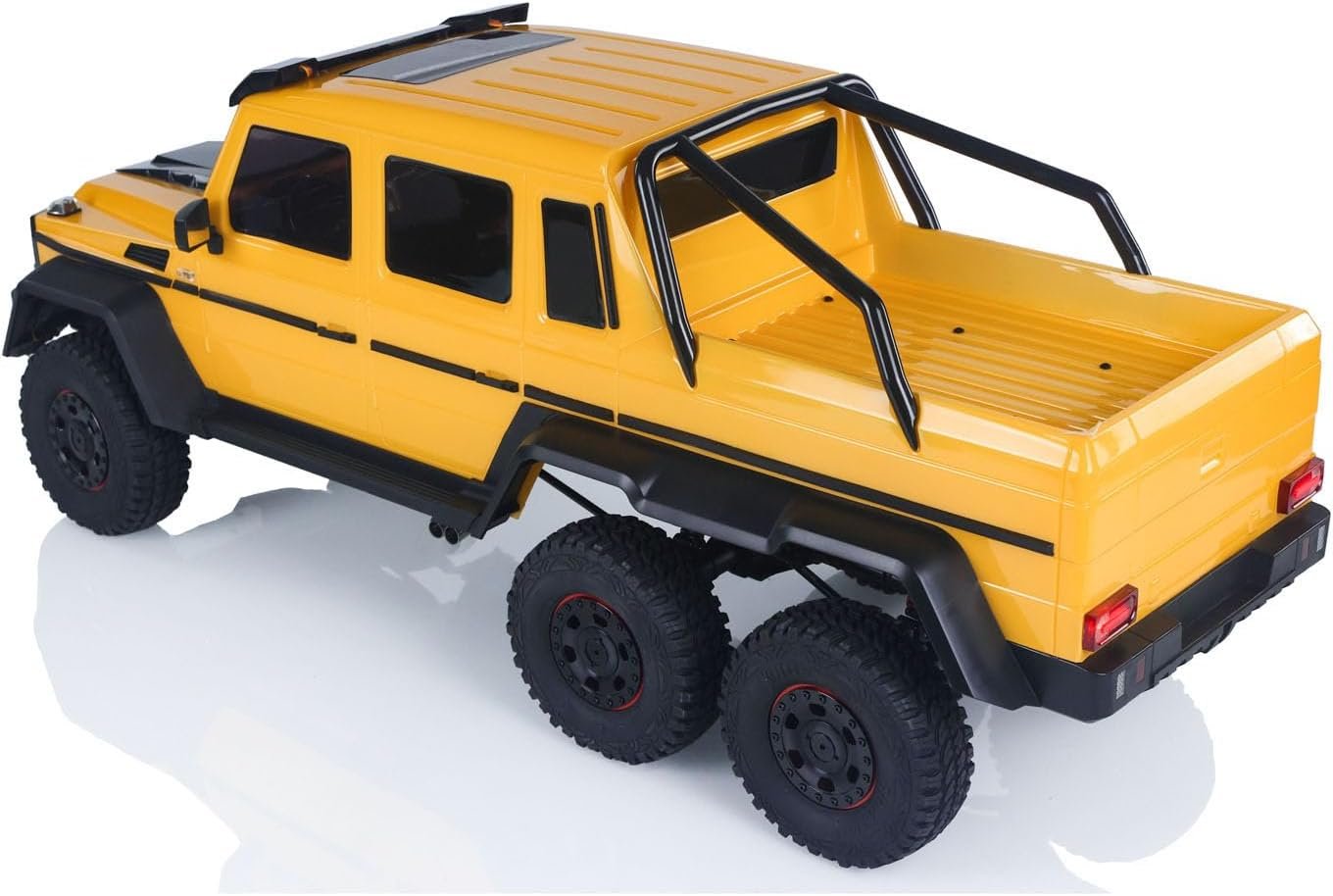

The PC material body features a sunken rear cargo bed, a CNC bull bar anti-collision bumper, metal footrests, and a detachable wading snorkel — recreating the details of a real 6X6 off-road vehicle with an approximate 95% simulation accuracy. A multi-mode LED lighting system with front headlights and taillights adds further realism for both daytime and low-light runs.
True 6X6 Portal Axle Design
Front, middle, and rear portal axles increase ground clearance and dramatically improve obstacle-crossing capability across complex, rough terrain. The axles combine high-performance nylon axle housings with a CNC differential cover and metal gear sets, blending light weight with high strength so the housings resist deformation even on steep climbs. Independently controlled front, middle, and rear differential locks give you precise traction management for the most demanding off-road scenarios.
Robust Dual-Speed Drivetrain
Three 7mm metal drive shafts paired with a metal gear dual-speed gearbox virtually eliminate power loss and wear under high torque, making the KM6 exceptionally well suited to rock climbing. A unique remote control mode switch lets you toggle between front-wheel drive, rear-wheel drive, and four-wheel drive to match your terrain and driving style.
Reinforced Chassis & Steering
Compared to typical 1/8 scale models, the KM6’s frame has been thickened for added strength, and it’s equipped with 5mm stainless steel tie rods and 7mm metal ball joints for significantly enhanced vertical load capacity. The steering system has been upgraded with a 23KG high-torque servo, a 25T metal servo arm, and a multi-link steering structure — an all-metal setup that extends service life roughly three times over comparable plastic components.
Tunable Suspension
The shock towers feature multiple mounting holes for adjustable geometry, while 102mm coilover metal shock absorbers with preload and rebound adjustment deliver smooth, controllable damping across rough terrain.
Maximum Grip, Every Surface
High-grip rubber tire treads mounted on 2.2-inch CNC metal wheels provide confident traction across mud, rock, and sand, giving the KM6 true all-terrain capability.
Key Specifications
| Manufacturer |
Traction Hobby |
| Scale |
1/8 |
| Material |
Plastic, Metal |
| Size |
772 × 300 × 280 mm |
| Wheelbase |
400 mm / 540 mm |
| Wheel Track |
237.5 mm |
| Axle Configuration |
6×6 Portal Axles with Independent Differential Locks |
| Motor |
775 Brushed |
| ESC |
80A Brushed |
| Steering Servo |
23KG |
| Gearbox |
2-Speed |
| Approach Angle |
47.5° |
| Passing (Breakover) Angle |
43° |
| Departure Angle |
43.5° |
| Ground Clearance |
50 mm |
| Wheels |
2.2″ CNC Metal |
| Vehicle Battery |
2–4S LiPo (3S 5000mAh Recommended, Not Included) |
| Remote Battery |
4 × AA (Not Included) |
| Battery Compartment |
150 × 46 × 40 mm (Max) |
| SKU |
THM-KM6-PNP-Y |

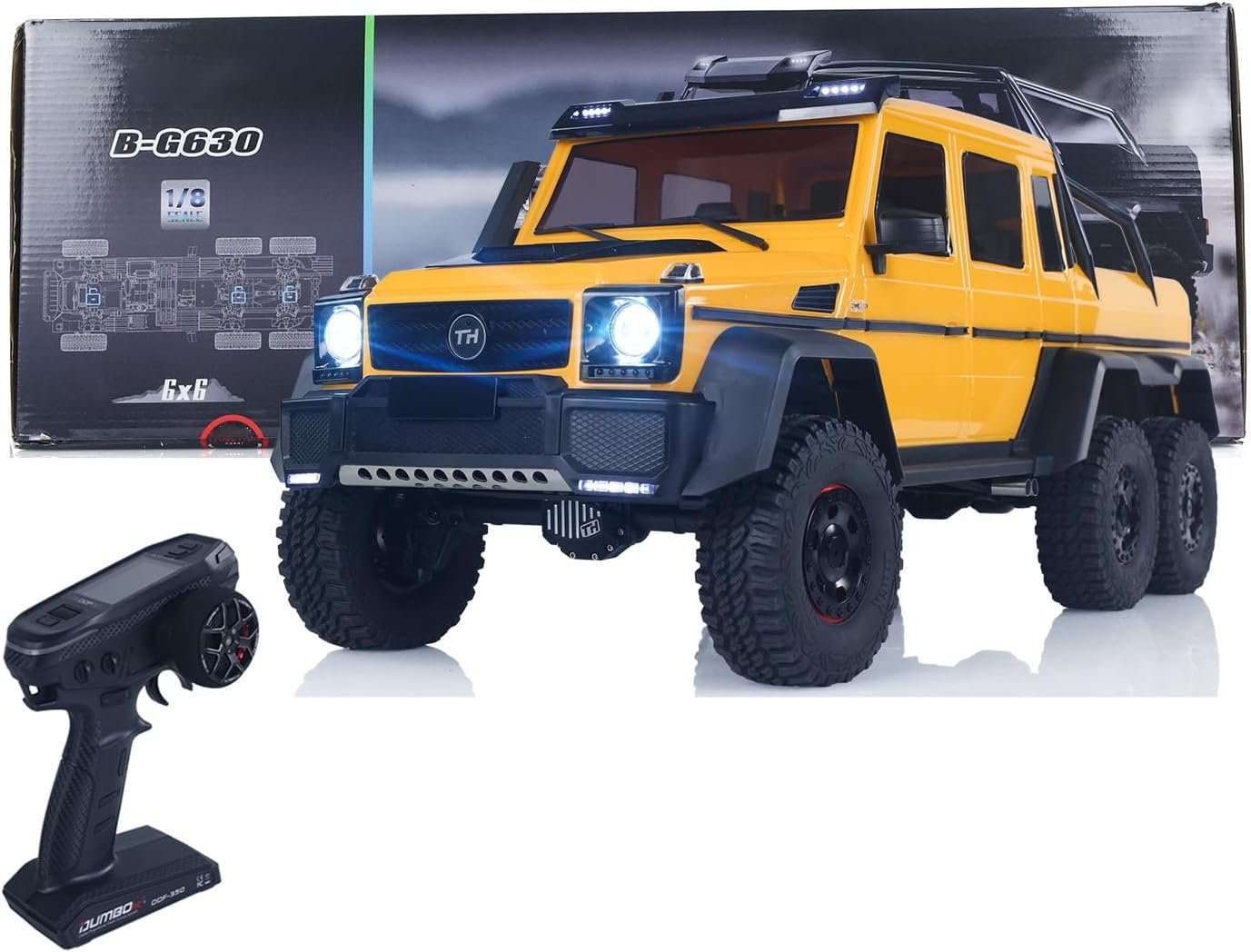

What’s in the Box
- 1/8 KM6 RC Off-Road Car Model (Assembled & Painted)
- Motor
- ESC
- Servo
- Light System
- Remote Controller & Receiver
- Manual
Note: Sound system, battery, and charger are not included.
With true portal axle geometry, independently locking differentials, and an all-metal reinforced drivetrain, the TRACTION HOBBY KM6 delivers a level of scale realism and mechanical capability that sets a new benchmark for 1/8 crawlers.
