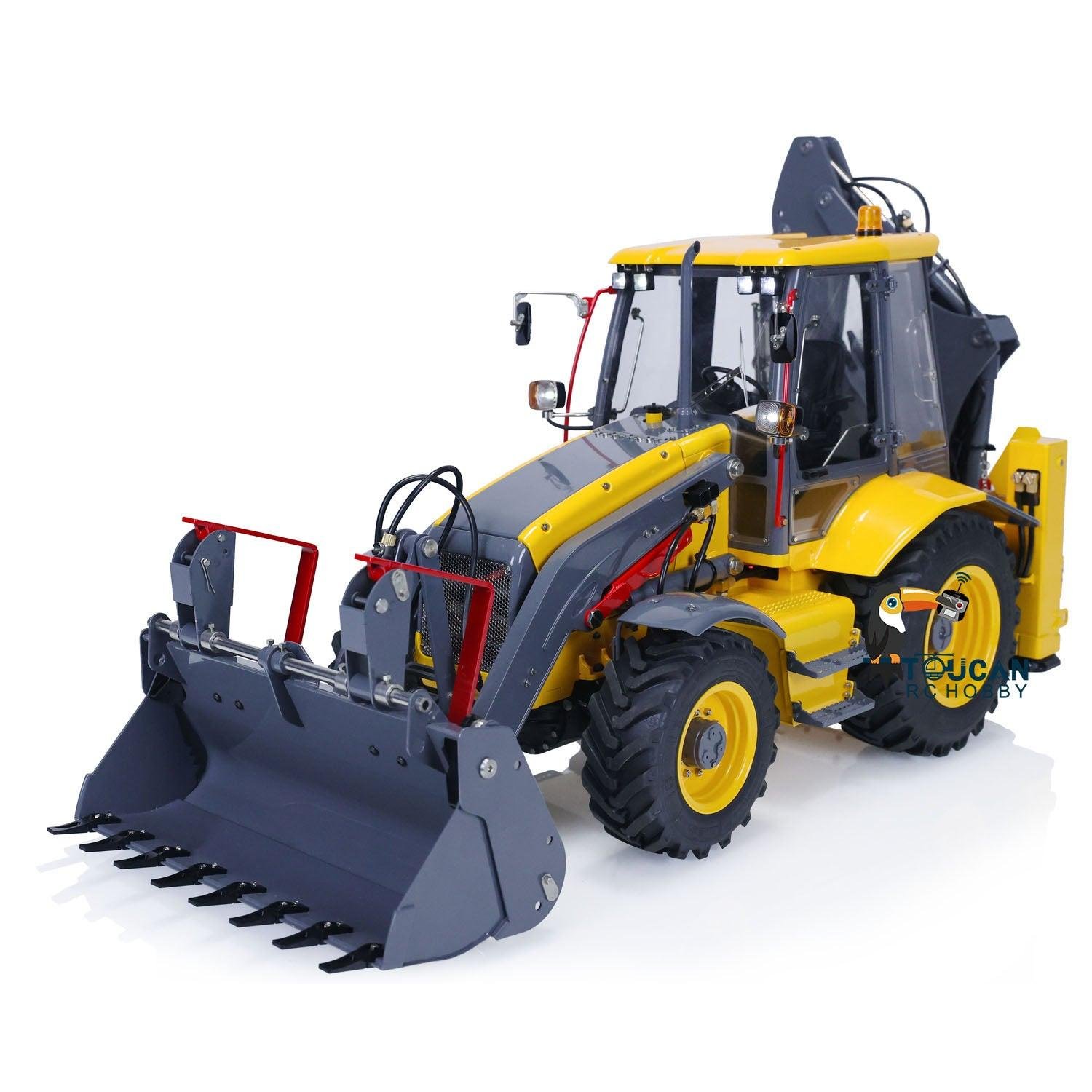

Experience true construction machine versatility with the LESU AOUE BL71, a 1/14 scale metal hydraulic RC backhoe loader that combines two machines in one. Fully assembled and painted, this model pairs a front loader with a rear excavator arm, delivering genuine multi-function capability alongside an impressive level of hydraulic realism and scale detail.
Two Machines, One Model
The BL71’s front end features a hydraulic front shovel, hydraulic bucket, and front fork attachment, giving you multiple loading functions from a single machine. The rear digging arm is equipped with a full digging assembly that moves laterally, extending the excavation range and letting you dig with genuine precision. A rotary cab seat lets the operator work comfortably from either end, adding both realism and functional convenience.
Precision Hydraulic System
At the heart of the BL71 is a fully engineered hydraulic system built from a hydraulic reversing valve, switching valve, brushless ESC, oil pump, fine stainless steel oil cylinders, overflow valve, and other precision components. Together, these deliver smooth, linear, and coordinated hydraulic movement across every function — from bucket curl to arm extension.
Rugged, Detailed Construction

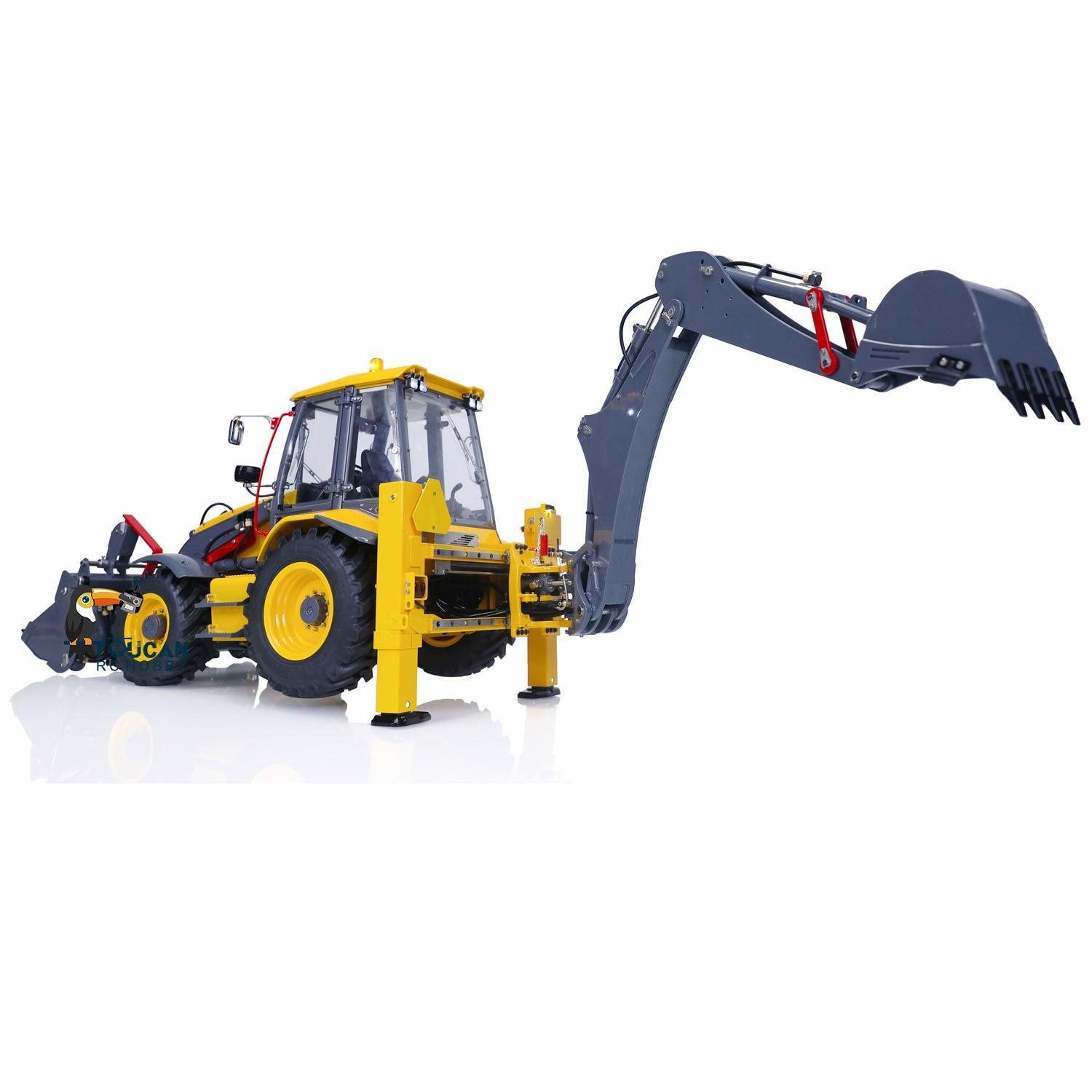

A CNC metal shell forms the foundation of the BL71, paired with a stainless steel front bucket featuring hydraulic opening and closing action. Front and rear aluminum alloy wheels are wrapped in high-quality rubber tire covers, while full-time 4×4 drive with power differential locking axles (1:2.7 front/rear reduction ratio) delivers confident traction. Hydraulic support legs add stability during digging operations, keeping the machine steady and secure while working.
Realistic Finish & Details

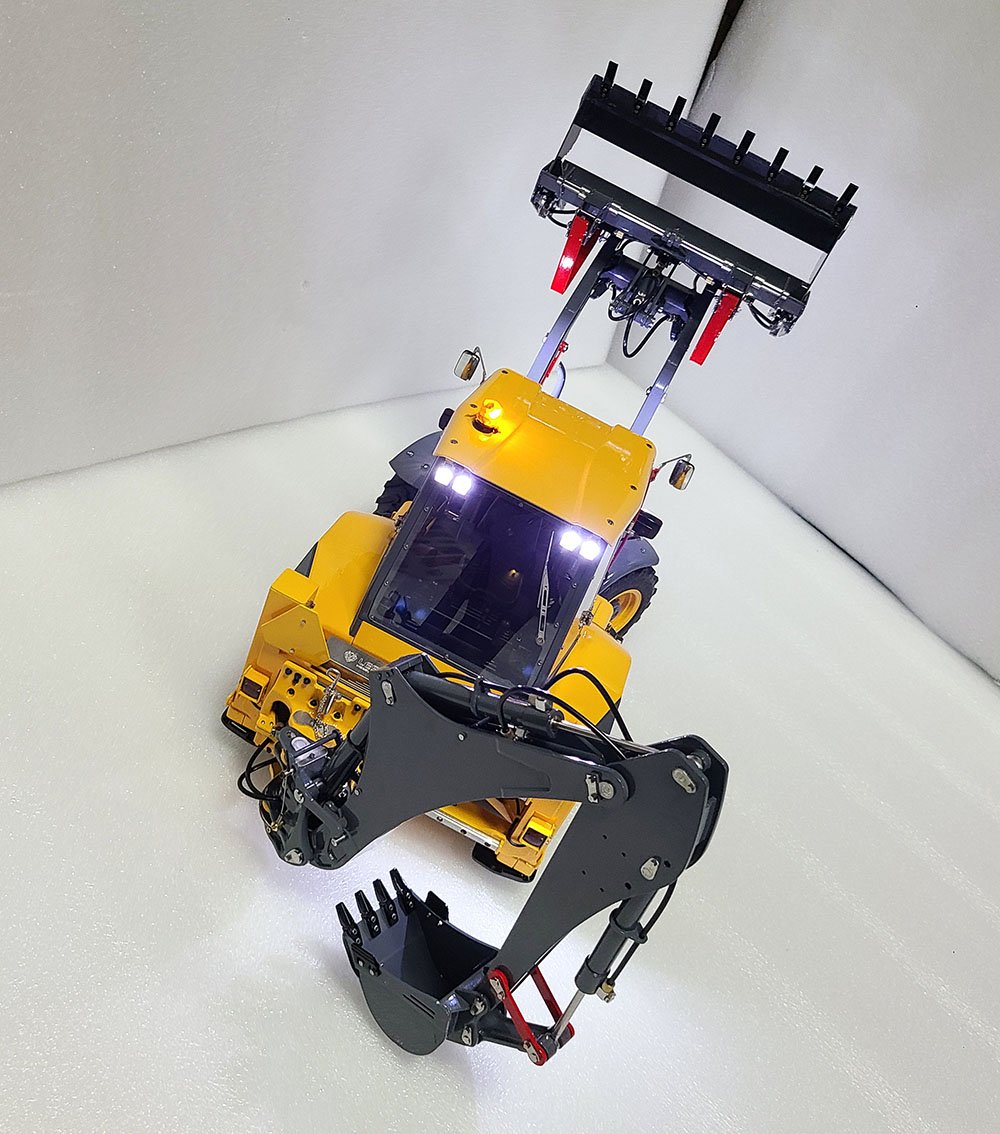

Integrated light and sound systems, along with a rotating beacon light, add immersive realism to every operation. High-simulation spray painting faithfully recreates the look of the real machine, right down to the finer details.

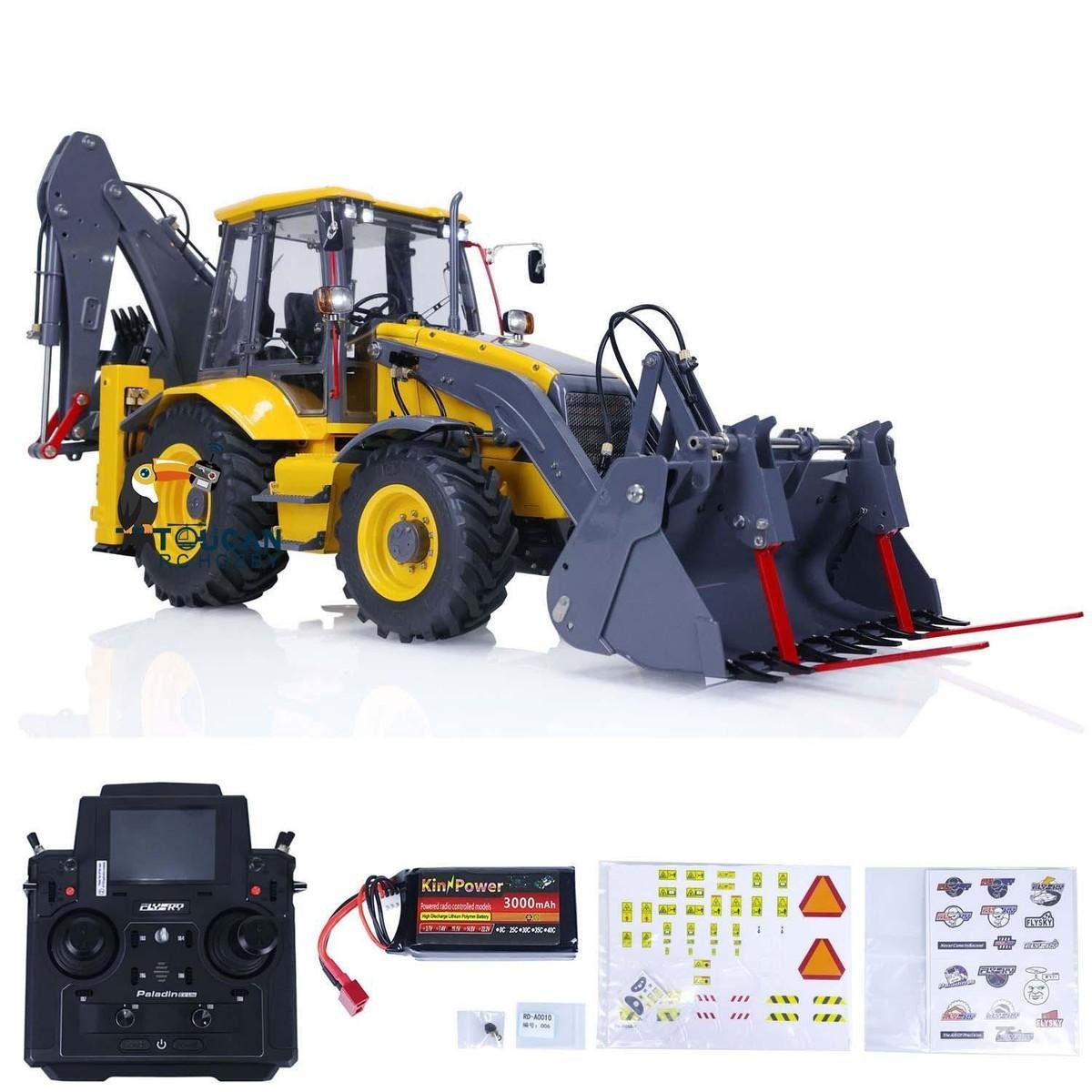

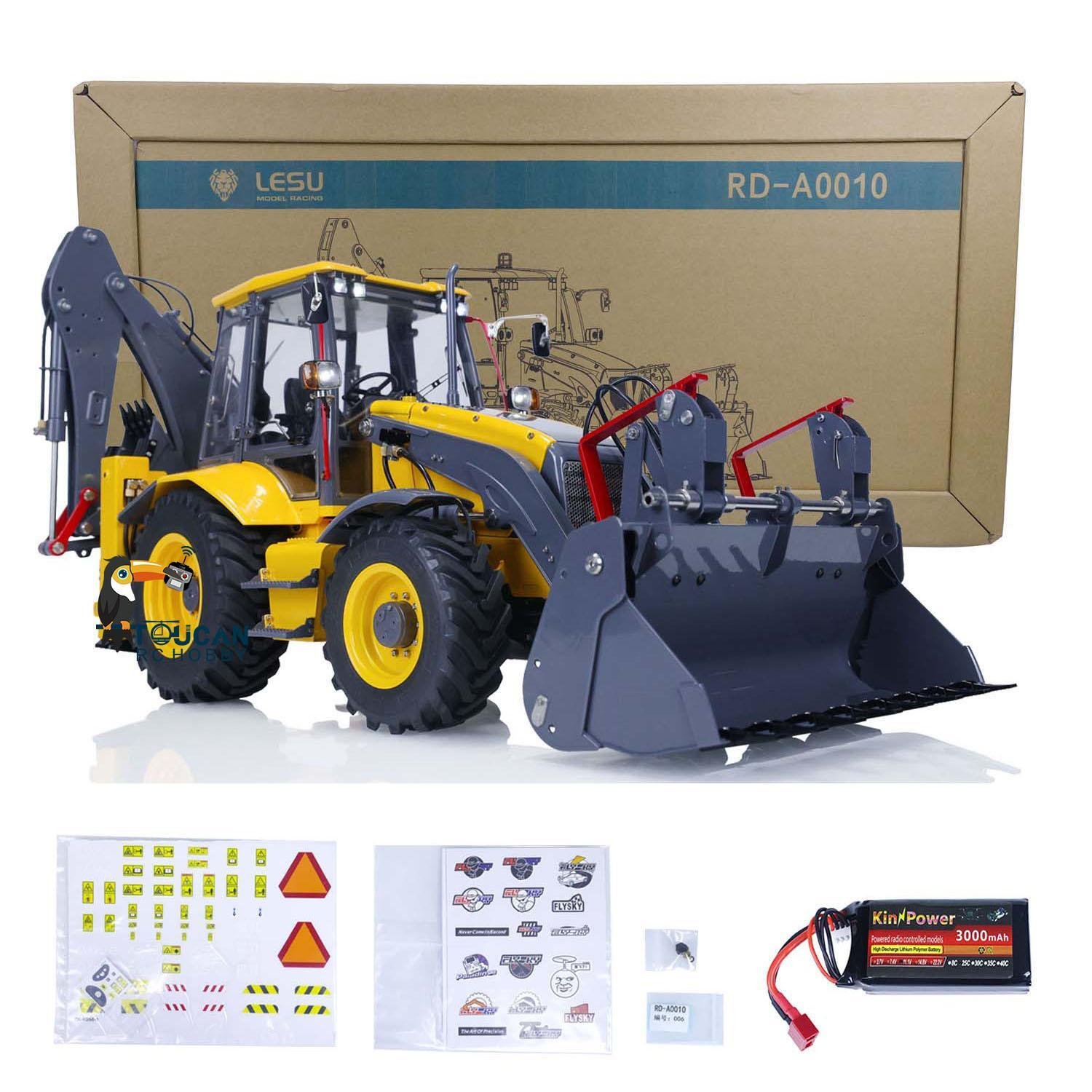

What’s in the Box
- 1/14 Metal 2-in-1 Hydraulic RC Backhoe Loader Excavator (Assembled & Painted)
- Motor, ESC & Servo
- Hydraulic System
- Light System & Sound System
- Rotating Beacon Light
- PL18EV Lite RC Controller & Receiver
- Battery
Note: Charger and hydraulic oil are not included.
Key Specifications
| Scale |
1/14 |
| Material |
Metal, Plastic |
| Model Weight |
~8.4 kg |
| Model Size |
513 × 214 × 283 mm |
| Drive System |
4×4 with Power Differential Locking Axles |
| Axle Reduction Ratio |
1:2.7 (Front & Rear) |
| Wheelbase |
169 mm |
| Tire Outside Width |
196 mm |
| Maximum Operating Height |
364 mm |
| Height from Top to Ground |
416 mm |
| Excavation Depth |
330 mm |
| Bucket Hinge Pin Height |
255 mm |
| Minimum Ground Clearance |
24 mm |
| Shovel Teeth Height (Loader) |
200 mm |
| Shovel Teeth Height (Excavator) |
282 mm |
| Bucket Tilt Angle |
39° |
| Cab Height (Top to Ground) |
244 mm |
| Rear Wheel to Rotating Seat Distance |
134 mm |
| Max. Rotating Seat to Bucket Distance |
477 mm |
| Rotating Base to Highest Point |
283 mm |
| Bucket Teeth to Tipper Linkage Distance |
89 mm |
With genuine 2-in-1 loader/excavator functionality, a precision hydraulic system, and an exceptional level of scale detail, the LESU AOUE BL71 stands out as a premium choice for serious RC construction equipment collectors.
